TE CONNECTIVITY / AMP 3-1634222-2 D SUB CONNECTOR, STANDARD, 9 POSITION, RECEPTICLE

Name: TE CONNECTIVITY / AMP 3-1634222-2
Brand: TE CONNECTIVITY / AMP

Add to Favorites

Spotted an Error?

Print Page

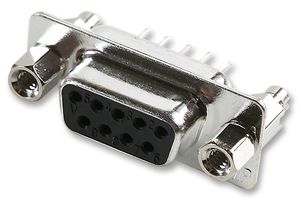

TE CONNECTIVITY / AMP-3-1634222-2-D SUB CONNECTOR, STANDARD, 9 POSITION, RECEPTICLE

Image is for illustrative purposes only. Please refer to product description.

Manufacturer: TE CONNECTIVITY / AMP
Newark Part No.: 15J5332
Manufacturer Part No 3-1634222-2

Technical Data Sheet (144.58KB) EN

Product Information

Connector Body Material: Steel
Connector Type: D Sub
Contact Termination: Solder
Contact Termination Type: Solder
D Sub Shell Size: DE
Gender: Receptacle
No. of Contacts: 9
Product Range: TE CONNECTIVITY - Amplimite HD-20 Series
SVHC: To Be Advised
Series: AMPLIMITE HD-20

View Associated Products View Substitutes

Find similar products grouped by common attribute

Availability

Availability: 844

844 in stock for same day shipping

see cut-off times

Check stock and lead times

Per the manufacturer, more stock expected week of 4/13/15

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Unit Price: $2.54

Quantity

Buy

Price

Quantity	List Price
1 - 9	$2.54
10 - 49	$2.44
50 - 99	$2.13
100 - 249	$2.03
250 - 499	$1.78
500 - 999	$1.73
1000 - 2499	$1.47
2500+	$1.37

TE CONNECTIVITY / AMP-3-1634222-2-D SUB CONNECTOR, STANDARD, 9 POSITION, RECEPTICLE;D SUB CONNECTOR, STANDARD, 9 POSITION, RECEPTICLE; Product Range:TE CONNECTIVITY - Amplimite HD-20 Series; No. of Contacts:9; D Sub Shell Size:DE; Connector Body Material:Steel; Gender:Receptacle; Contact Termination Type:Solder ;RoHS Compliant: Yes

Legislation and Environmental

RoHS Compliant: Yes
RoHS Certificate of Compliance
