TE CONNECTIVITY / AMP  1658613-1  Standard D Sub Connector, Amplimite HDF-20, Amplimite HDF-20 Series, DC, Plug, 37 Contacts

TE CONNECTIVITY / AMP 1658613-1

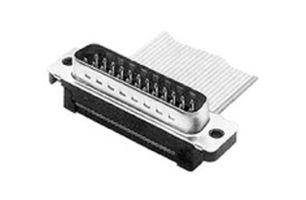

Image is for illustrative purposes only. Please refer to product description.

Additional images

Product Overview


The 1658613-1 is a 37-way 2-row IDC Standard D-sub Plug for flat ribbon cable. It has phosphor bronze contacts and standard mounting holes. This Amplimite HDF-20 series low profile connector comes with tin-plated steel shell, thermoplastic housing and tin over nickel plated solder tail. It accepts 28 to 26AWG wire.
  • UL94V-0 Flammability rating

Applications

Industrial

Product Range

Back to top

Product Information


  • Connector Type
  • Product Range Amplimite HDF-20 Series
  • D Sub Shell Size DC
  • Gender Plug
  • No. of Contacts 37Contacts
  • Connector Body Material Metal Body
  • Connector Mounting
  • Contact Termination Type IDC / IDT
  • Contact Plating Gold Plated Contacts
  • Contact Termination IDC / IDT
  • Series AMPLIMITE HDF-20
  • Contact Material Phosphor Bronze
  • SVHC To Be Advised

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/861
  •  132/867

  • Drawing (94.56KB) EN
  • 3D Product Image (183.48KB) EN
  • Availability

    Availability:  207


    • 207 in stock for same day shipping

    Check stock and lead times
      More stock available week commencing 8/22/16

    Price for: Each

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $16.54 $16.54

    Buy

    Price

    Quantity List Price
    1 - 9 $16.54
    10 - 49 $13.09
    50 - 99 $11.79
    100 - 249 $11.13
    250 - 499 $10.15
    500 - 999 $9.49
    1000 - 2499 $8.71
    2500+ $8.51
