AMP - TE CONNECTIVITY  102241-3  Wire-To-Board Connector, AMPMODU Mod IV Series, 5 Contacts, Receptacle, 2.54 mm, 1 Rows

AMP - TE CONNECTIVITY 102241-3
Technical Data Sheet (4.20MB) EN See all Technical Docs

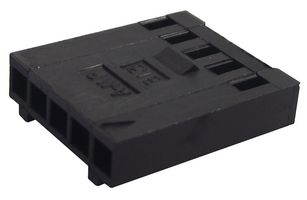

The actual product may differ from image shown

Product Overview

The 102241-3 is a 5-way 1-row MOD IV Wire-to-board Receptacle Housing made of black nylon GF. The connector comes with beryllium copper contacts, crimp termination and detent latching lock. The housing terminates 32 to 20AWG discrete wire and accepts a variety of receptacle and pin contacts.
  • UL94V-0 Flammability rating
  • 3A Contact current rating
  • 250VAC Maximum voltage rating
  • 12mΩ Termination resistance
  • 750V Dielectric withstanding voltage
  • 5000MΩ Insulation resistance
  • -65 to 105°C Operating temperature range



Product Information

Product Range:
AMPMODU Mod IV Series
No. of Contacts:
5Contacts
Gender:
Receptacle
Pitch Spacing:
2.54mm
Contact Termination Type:
-
No. of Rows:
1Rows
Contact Plating:
-
Contact Material:
-
Contact Termination:
-
Series:
AMPMODU Mod IV
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

Product Traceability
RoHS Compliant:
Yes
