TDK  SPM6530T-3R3M  Surface Mount Power Inductor, SPM Series, 3.3 µH, 6.8 A, 7.3 A, Wirewound, 0.0297 ohm

TDK SPM6530T-3R3M
Manufacturer:
TDK TDK
Manufacturer Part No:
SPM6530T-3R3M
Newark Part No.:
90R0849
Product Range
SPM Series
Technical Datasheet:
See all Technical Docs

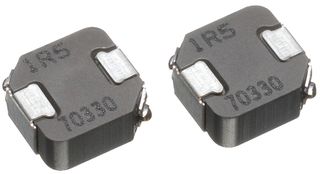

The actual product may differ from image shown

Product Overview

The SPM series low-profile SMD Power Inductor suitable for power circuits. It has an integrated moulded coil, so hum noise is lower than with core adhesive coils.
  • Compared to ferrite wound inductor, it is possible to achieve large current, low Rdc and compactness
  • Low inductance variance in high-temperature environments with good DC superimposition
  • Wound metallic magnetic
Use a wrist band to discharge static electricity in your body through the grounding wire.
Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference.



Product Information

Product Range:
SPM Series
Inductance:
3.3µH
RMS Current (Irms):
6.8A
Saturation Current (Isat):
7.3A
Inductor Construction:
Wirewound
DC Resistance Max:
0.0297ohm
Power Inductor Case:
7.1mm x 6.5mm x 3mm
Inductance Tolerance:
± 20%
Packaging:
Cut Tape
SVHC:
No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

Applications

  • Power Management
  • Industrial
  • Consumer Electronics
  • Portable Devices
  • Communications & Networking
  • Computers & Computer Peripherals

Notes

Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference.

Legislation and Environmental

Product Traceability
RoHS Compliant:
Yes
