STMICROELECTRONICS  BTA41-600BRG  Triac, 600 V, 100 mA, 1 W, 1.3 V, TOP-3, 400 A

STMICROELECTRONICS BTA41-600BRG
STMICROELECTRONICS BTA41-600BRG
Technical Data Sheet (101.16KB) EN See all Technical Docs

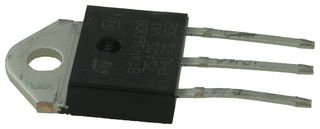

Image is for illustrative purposes only. Please refer to product description.

STMICROELECTRONICS BTA41-600BRG
STMICROELECTRONICS BTA41-600BRG

Product Overview

The BTA41-600BRG is a TRIAC for phase control operations in light dimmers, motor speed controllers.
  • Low Thermal Resistance with Clip Bonding
  • High Commutation Capability



Product Information

Peak Repetitive Off-State Voltage, Vdrm:
600V
Gate Trigger Current Max (QI), Igt:
100mA
Peak Gate Power:
1W
Gate Trigger Voltage Max Vgt:
1.3V
Triac Case Style:
TOP-3
Peak Non Rep Surge Current Itsm 50Hz:
400A
On State RMS Current IT(rms):
41A
Holding Current Max Ih:
80mA
No. of Pins:
3Pins
Operating Temperature Max:
125°C
Product Range:
-
Thyristor Case:
TOP-3
MSL:
-
Operating Temperature Min:
-40 °C
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Motor Drive & Control

Legislation and Environmental

Moisture Sensitivity Level:
-
Product Traceability
RoHS Compliant:
Yes
