SCHROFF  24563-163  19 Inch Subrack, EuropacPro, Kit, Without Handle, 3U, 84, 295 mm, 133 mm, 427 mm, 11.615 "

SCHROFF 24563-163
SCHROFF 24563-163
Technical Data Sheet (807.36KB) EN See all Technical Docs

The actual product may differ from image shown

SCHROFF 24563-163
SCHROFF 24563-163

Product Overview

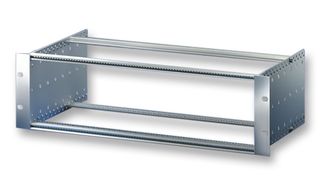

The 24563-163 is an EuropacPRO kit unshielded Subrack with side panel and front 19-inch bracket firmly fixed to side panel. This heavy design Subrack with rear horizontal rail is used for backplane mounting with insulation strip. The approximate EMC of 40dB at 1GHz, 30dB at 2GHz, assuming that the front is covered with shielded front panels.
  • IP20 Protection rating
  • Supplied as space-saving flat-pack
  • Horizontal rail type heavy
  • Aluminium construction



Product Information

Rack U Height:
3U
Rack HP Width:
84
External Depth - Metric:
295mm
External Height - Metric:
133mm
External Width - Metric:
427mm
External Depth - Imperial:
11.615"
External Height - Imperial:
5.25"
External Width - Imperial:
16.8"
Product Range:
-
SVHC:
No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

RoHS Compliant:
Yes
