LUB32 -

Power Base, Non Reversing, TeSys U LEB Series, 3 Pole, 32 A, 690 Vac, 1 NO + 1 NC

LUB32 - Power Base, Non Reversing, TeSys U LEB Series, 3 Pole, 32 A, 690 Vac, 1 NO + 1 NC
LUB32 - Power Base, Non Reversing, TeSys U LEB Series, 3 Pole, 32 A, 690 Vac, 1 NO + 1 NC
LUB32 - Power Base, Non Reversing, TeSys U LEB Series, 3 Pole, 32 A, 690 Vac, 1 NO + 1 NC
LUB32 - Power Base, Non Reversing, TeSys U LEB Series, 3 Pole, 32 A, 690 Vac, 1 NO + 1 NC

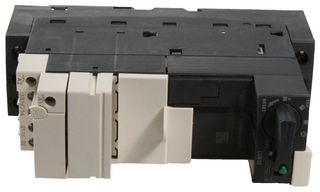

The actual product may differ from image shown

Manufacturer Part No:
LUB32
Newark Part No.:
89H5218
Technical Datasheet:
(EN)
See all Technical Docs

Product Information

:
-
:
690V
:
-
:
-
:
32A
:
-
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The LUB32 from Schneider Electric is a 3 pole, screw clamps controlled non reversing power base (LUB) with 32A thermal current.
  • 1 NO + 1 NC composition
  • Rated operational voltage range from 230V to 690V
  • Network frequency range from 40Hz to 60Hz
  • Mechanical durability of 15000000 cycles
  • Standard dimension of 145mm x 45mm x 126mm (H x W x D)
  • Product weight is 0.9Kg
  • ABS, ASEFA, ATEX, BV, CCC, CSA, DNV, GL, GOST, LROS and UL certified
  • IEC 60947-6-2 and EN 60947-6-2 standard
  • IP40 front panel outside connection zone conforming to IEC 60947-1
  • IP20, other faces conforming to IEC 60947-1

Applications

Industrial, Automation & Process Control, Motor Drive & Control

Associated Products

Compare Selected

Related Searches

US continental orders over $49 and under 50 pounds may qualify for free ground shipping. Click the link for the full Terms and Conditions of the offer.

10 In stock

for same day shipping

see cut-off times

Check stock and lead times
More stock available week commencing 10/23/17
$278.98 $ 278.98
Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price
1 + $309.97
5 + $273.37
10 + $272.10
