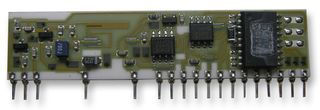

RF SOLUTIONS HIR6-433A RF MODULE, RECEIVER, AM, HYBRID, 433MHZ
Image is for illustrative purposes only. Please refer to product description.
- Manufacturer: RF SOLUTIONS
- Newark Part No.: 80P4363
- Manufacturer Part No HIR6-433A
- SVHC: To Be Advised
- Supply Voltage Max: -
- Supply Voltage Min: -
HIR6-433A is an AM 433MHz Super Regenerative low power RX decoder. A range of miniature single in line (SIL) hybrid modules providing complete four channel radio receiver/decoder systems available in either AM or FM. When used with the 110-AM or 120-FM series pocket keyfobs, A complete remote telemetry system is obtained with up to 150 meters range. The module consists of a front end super-heterodyne or super-regen RF receiver with an embedded microcontroller decoding a highly secure Keeloq protocol signal. The module has an easy-to-use 'LEARN' facility and is capable of learning up to 50 unique keyfob encoders. The module requires a 5V power supply and provides a direct LED drive showing data reception and four digital data outputs. The outputs may be programmed for momentary or latching configuration. The modules have flash re-programmability feature to enable field re-programming of the controller.
- AM 433MHz SuperRegenerative low power RX decoder
- Advanced Keeloq decoding
- Advanced laser trimmed ceramic module
- AM range up to 100 meters
- FM range up to 150 meters
- Easy learn transmitter feature
- Outputs, momentary or latching & serial data
- Direct led drive shows data reception
- Flash re-programmable
- HIR6 low power version (
- Communications & Networking
- RF Communications
Find similar products grouped by common attribute
Availability: No Longer Manufactured
- 34R4726 - RF Modulation:FM; Data Rate Max:-; Frequency:433.92MHz; Sensitivity dBm:-103dBm; Supply Voltage Min:4.5V; Supply Voltage Max:5.5V; Supply Current:-; Supported Devices - RF Receivers:- ;RoHS Compliant: Yes
