PCI-AC5 -

Interface Card, Rack Mount, 48 Input, 48 Output, 111 mm x 133.35 mm

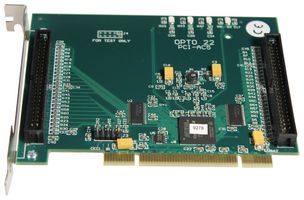

PCI-AC5 - Interface Card, Rack Mount, 48 Input, 48 Output, 111 mm x 133.35 mm
PCI-AC5 - Interface Card, Rack Mount, 48 Input, 48 Output, 111 mm x 133.35 mm
PCI-AC5 - Interface Card, Rack Mount, 48 Input, 48 Output, 111 mm x 133.35 mm

The actual product may differ from image shown

Manufacturer:
OPTO 22 OPTO 22
Manufacturer Part No:
PCI-AC5
Newark Part No.:
01C7187
Technical Datasheet:
(EN)
See all Technical Docs

Product Information

:
-
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The PCI-AC5 is an Adapter Card provides an interface between personal computers with a 33MHz PCI bus and Opto 22 digital I/O mounting racks, for direct connection to input/output points. No brain (I/O processor) is required. The PCI-AC5 is about 100 times as fast as the older AC5 adapter card and can control up to 48 I/O points. The PCI-AC5 offers expanded operation and support for modern computers with PCI and PCIe slots. These cards are about 100 times as fast as the AC5 in accessing I/O using the free PC-based direct I/O SDK. The PCI cards also have jumperless configuration and four LEDs for debugging or indicating application status. Compatible with 5VDC logic modules, such as the IDC5, ODC5, G4IDC5, G4ODC5 and SNAP-IAC5.
  • Provides direct connection to a wide variety of I/O mounting racks
  • Bidirectional I/O lines allow any combination of input and output modules
  • Includes six-foot interface cable
  • 0 to 70°C Operating temperature range

Applications

Computers & Computer Peripherals

Warnings

Using incompatible racks may cause damage to the computer.
