ON SEMICONDUCTOR  MURA140T3G  Fast / Ultrafast Diode, 400 V, 1 A, Single, 1.1 V, 65 ns, 35 A

ON SEMICONDUCTOR MURA140T3G
Technical Data Sheet (123.71KB) EN See all Technical Docs

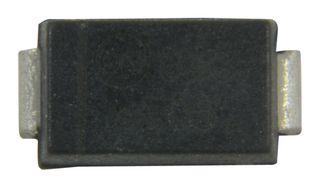

The actual product may differ from image shown

Product Overview

The MURA140T3G is a surface-mount ultra-fast Power Rectifier with moulded epoxy case. It is ideally suited for high voltage, high frequency rectification or as free-wheeling and protection diodes in surface-mount applications where compact size and weight are critical to the system.
  • Polarity band indicates cathode lead
  • All external surfaces corrosion-resistant and terminal leads are readily solderable
  • Small compact surface-mountable package with j-bend leads
  • Rectangular package for automated handling
  • High temperature glass-passivated junction
  • Low forward voltage drop



Product Information

Repetitive Reverse Voltage Vrrm Max:
400V
Forward Current If(AV):
1A
Diode Configuration:
Single
Forward Voltage VF Max:
1.1V
Reverse Recovery Time trr Max:
65ns
Forward Surge Current Ifsm Max:
35A
Operating Temperature Max:
175°C
Diode Case Style:
DO-214AC
No. of Pins:
2 Pin
Packaging:
Cut Tape
Product Range:
MURA1 Series
Automotive Qualifications Standard:
-
MSL:
MSL 1 - Unlimited
Operating Temperature Min:
-65 °C
SVHC:
No SVHC (17-Dec-2015)
Diode Type:
Fast Recovery

Find similar products  grouped by common attribute

Applications

  • Power Management;
  • Industrial

Legislation and Environmental

Moisture Sensitivity Level:
MSL 1 - Unlimited
Product Traceability
RoHS Compliant:
Yes
