WB28SHM -

Wire Wrap Tool, Bit, Modified, 28AWG

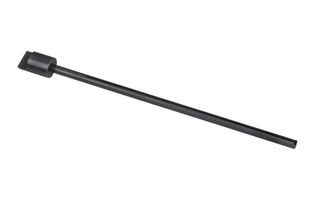

WB28SHM - Wire Wrap Tool, Bit, Modified, 28AWG

The actual product may differ from image shown

Manufacturer Part No:
WB28SHM
Newark Part No.:
10F7517
Technical Datasheet:
(EN)
See all Technical Docs

Product Information

:
Bit
:
Modified
:
0.031"
:
0.035"
:
-
:
28AWG
:
-
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The WB28SHM is a Wire Wrapping Bit provides 1.5 to 2 turns of insulation. This tool is recommended for 0.025-inch square terminals on 0.100-inch center to center of the pins. Fully compatible with any make or model wire wrapping tool.
  • 0.75" Terminal hole
  • 0.066" Effective radius
  • 0.030" (0.76mm) Maximum insulation diameter

Applications

Maintenance & Repair

Related Searches

US continental orders over $49 and under 50 pounds may qualify for free ground shipping. Click the link for the full Terms and Conditions of the offer.

1 In stock

for same day shipping

Available in quantity shown

To order more than shown inventory, contact sales

see cut-off times
$60.96 $ 60.96
Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price
1 + $60.96
No longer stocked:: No Longer Manufactured::
Add to Cart
Total Price:
Total Price: ( )
Total Price: --

Customer Reviews

Customer Q&A Exchange

(There is 1 question : 1 answer on this product)

Product Q&A

Ask your questions. Share your answers.



Browse Q&A


Search Questions
Need Product Support?
If you need immediate technical support use Live Support or Contact Us.
This space is yours...
Use this space to Ask your peers product questions or Answer those questions posted by them.
3 years, 1 month ago
by
supergas
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
WB28SHM is wire wrap bit only. For sleeve, 10F7522 is the Newark part number.
