Product Overview

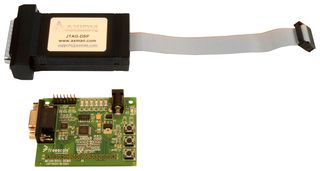

The DEMO56F8013-EE is an demonstration board for 56F8013 digital signal controller. The demonstration board includes a 56F8013 digital signal controller, RS232 interface, user LEDs, user pushbutton switches and a daughter card connector. The daughter card connector allows signal monitoring and expandability of user features.
  • 56F8013, a 16bit 3.3V hybrid controller operating at 32MHz
  • Joint test action group (JTAG) port interface connector, for an external debug host target interface
  • RS232 interface, for easy connection to a host processor [U2 and P3]
  • Daughter card connector, to allow the user to connect PWM, ADC, SCI, SPI or GPIO peripheral to DSC
  • On board power regulation provided from an external 9V DC supplied power input
  • Light emitting diode (LED) power indicator
  • Six on board real time user debugging LEDs
  • Manual RESET push button
  • Manual interrupt #1 push button
  • Manual interrupt #2 push button



Product Information

Silicon Manufacturer:
NXP
Accessory Type:
Core Architecture:
56800/E
For Use With:
Core Sub-Architecture:
56800/E
Silicon Core Number:
MC56F
Silicon Family Name:
MC56F80xx
No. of Bits:
32bit
Kit Contents:
Demonstration Board, Cables, Software, Guides
Product Range:
-
Features:
RS232 Interface, Onboard Power Regulation, Manual RESET Pushbutton
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Consumer Electronics;
  • Industrial;
  • Power Management;
  • Alternative Energy;
  • Medical;
  • Motor Drive & Control

Contents

Installation Guide, Demonstration Board, CodeWarrior Software, Adapter cable, Resource CD ROM.

Legislation and Environmental

RoHS Compliant:
Yes
