NEWPORT ELECTRONICS  I853  TEMPERATURE CONTROLLED, 20VDC TO 36VDC

NEWPORT ELECTRONICS I853
NEWPORT ELECTRONICS I853
Technical Data Sheet (239.59KB) EN See all Technical Docs

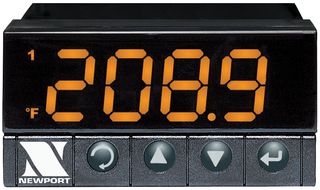

The actual product may differ from image shown

NEWPORT ELECTRONICS I853
NEWPORT ELECTRONICS I853

Product Overview

The I853 is a 4-digit Temperature Process and Strain PID Controller with analogue and relay outputs. It covers a broad selection of transducer and transmitter inputs with 2 input models. The universal temperature and process instrument (i model) handles 10 common types of thermocouples, multiple RTDs and several process (DC) voltage and current ranges. This model also features built-in excitation, 24VDC at 25mA with its wide choice of signal inputs. This model is an excellent choice for measuring or controlling temperature with a thermocouple, RTD or 4 to 20mA transmitter.
  • High quality
  • User-friendly, simple to configure
  • Free software
  • Full auto tune PID control
  • Totally programmable colour displays standard
  • Built-in excitation standard
  • Display can be programmed to change colour at any set-point or alarm point
  • Embedded internet connectivity



Product Information

No. of Digits / Alpha:
4
Meter Function:
Temperature
Meter Range:
0mA to 20mA / 0V to 10V
Digit Height:
21mm
Panel Cutout Height:
45mm
Panel Cutout Width:
92mm
Supply Voltage Min:
-
Supply Voltage Max:
-
Operating Temperature Min:
-
Operating Temperature Max:
-
Product Range:
i18 Series
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Industrial;
  • Metering;
  • Test & Measurement
