NEUTRIK  NYS226  Phone Audio Connector, 2 Contacts, Plug, 3.5 mm, Cable Mount, Nickel Plated Contacts, Metal Body

NEUTRIK NYS226
NEUTRIK NYS226
Manufacturer:
NEUTRIK NEUTRIK
Manufacturer Part No:
NYS226
Newark Part No.:
38K6105
Technical Datasheet:
See all Technical Docs
NEUTRIK NYS226
NEUTRIK NYS226

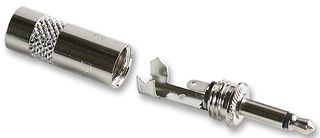

The actual product may differ from image shown

Product Overview

The NYS226 from Neutrik is a 2 pole, 3.5mm male plug with metal handle and crimp strain relief.
  • Brass (CuZn39Pb3) contacts with nickel plating
  • Zinc die-cast (ZnAl4Cu1) shell with nickel shell plating
  • Thermoplastic insulation
  • Dielectric strength of 0.5KVDC
  • Cable outer diameter of 4mm
  • Complies with IEC 68-2-20 solderability
  • Temperature range from -25°C to 70°C

Product Information

No. of Contacts:
2Contacts
Gender:
Plug
Pin Diameter:
3.5mm
Connector Mounting:
Cable Mount
Contact Plating:
Nickel Plated Contacts
Connector Body Material:
Metal Body
Product Range:
-
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Legislation and Environmental

RoHS Compliant:
Yes
