MURATA  DLW21SN900SQ2L  COMMON MODE CHOKE, 90 OHM, SURFACE MOUNT-SMD

MURATA DLW21SN900SQ2L

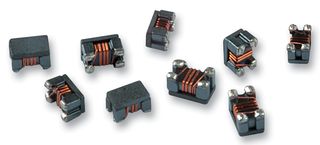

Image is for illustrative purposes only. Please refer to product description.

Additional images

  • Manufacturer:
  • Newark Part No.: 74M0672
  • Manufacturer Part No DLW21SN900SQ2L

Product Overview


The DLW21S series from Murata are wire wound common mode chokes. DLW21S series enables noise suppression for differential signal line without distortion in high speed signal transmission due to its high coupling. Typical applications include USB lines of PC, peripheral equipment, LVDS lines of Note PCs, LCDs and USB lines of small digital AV equipment such as digital cameras.
  • 2.0mm x 1.2mm x 1.2mm case size
  • Operating temperature range from -40°C to +85°C
  • Common mode impedance range from 67ohm to 500 ohm at 100MHz
  • High common mode impedance at high frequency effects excellent noise suppression performance
  • Rated voltage of 50VDC
  • Minimum insulation resistance of 10Mohm

Applications

Industrial; Power Management; Consumer Electronics; Portable Devices

Product Range

Back to top

Product Information


  • SVHC To Be Advised
  • Product Range DLW21S Series
  • Inductance -
  • Impedance 90ohm
  • Rated Current 330mA
  • Common Mode Filter Case 2mm x 1.2mm x 1.2mm
  • Voltage Rating VDC 125 V
  • No. of Pins 4
  • Impedance Typ 90 ohm
  • Filter Case 0805
  • Insulation Resistance 10 Mohm
  • DC Current Max 330 mA
  • DC Resistance Max 0.35 ohm
  • Filter Terminals Surface Mount

Availability

Availability:  19,886


  • 19,886 in stock for same day shipping

Check stock and lead times
  • 6,335 Further stock expected to ship on May 15, 2016
  • More stock available week commencing 6/13/16

Price for: Each (Supplied on Cut Tape)

Minimum order quantity: 1

Order multiple quantity: 1

Price: $0.373 $0.373

Buy

Price

Quantity List Price
1 - 9 $0.373
10 - 24 $0.289
25 - 99 $0.222
100 - 249 $0.202
250 - 499 $0.185
500+ $0.176
