MOLEX  03-09-1032  PLUG & SOCKET HOUSING, RECEPTACLE, 3 POSITION, 5.03MM

MOLEX 03-09-1032

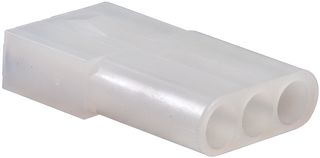

Image is for illustrative purposes only. Please refer to product description.

Additional images

  • Manufacturer:
  • Newark Part No.: 38C8728
  • Manufacturer Part No 03-09-1032

Product Overview


The 03-09-1032 is a 3-way 1-row 0.093-inch standard pin and socket Receptacle Housing made of nylon. It mates with 03-09-2031, 03-09-2032, 03-09-7032 and 3099 plug housing. The crimp housing is suitable for power and wire-to-wire applications. This 1396 series receptacle housing can be used with 1189, 1190, 1433 crimp terminals, 1376 male PC tail terminals, 1377 female PC tail terminals, 1381 female crimp terminals and 1380, 1434, 1973 male crimp terminals.
  • Natural color
  • UL94V-2 Flammability rating
  • 14A Maximum current per contact

Applications

Power Management; Consumer Electronics; Microwave; Computers & Computer Peripherals; Communications & Networking

Product Range

Back to top

Product Specifications, Documents & More


  • For Use With: 1189, 1190, 1380, 1381, 1433, 1434, 1973 Crimp Terminals, 1376 Male PC Tail Terminals, 1377 Female PC Tail Terminals
  • No. of Positions: 3
  • Pitch Spacing: 5.03mm
  • Product Range: 1396 Series
  • SVHC: To Be Advised

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/901
  •  132/907

Availability

Availability:  7,762


  • 7,762 in stock for same day shipping

Check stock and lead times
    More stock available week commencing 3/28/16

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $0.30 $0.3

Buy

Price

Quantity List Price
1 - 9 $0.30
10 - 99 $0.204
100 - 499 $0.166
500 - 999 $0.159
1000 - 1999 $0.14
2000 - 4999 $0.112
5000 - 9999 $0.107
10000+ $0.104


Low

Legislation and Environmental


Back to top

Similar Products


Find products functionally similar to this one. Select one of the following links, and you will be taken to a product group page that presents all products in this category that share the given attribute.

Back to top

Customer Reviews


Customer Q&A Exchange


(There is 1 question : 1 answer on this product)

Product Q&A

Ask your questions. Share your answers.



Browse Q&A


Search Questions
Need Product Support?
If you need immediate technical support use Live Support or Contact Us.
This space is yours...
Use this space to Ask your peers product questions or Answer those questions posted by them.
Details:
Can you suggest the part number for socket contacts which can be used for 3 way crimp housing (part number 03-09-1032)?
3 years, 6 months ago
by
NewarkTechSupp
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
Suggested part number for contacts is 02-09-1102 from Molex.
3 years, 6 months ago
by
NewarkTechSupport
0points
0out of 0found this answer helpful.
Was this helpful?(0)(0)
1 of 1
