MICROCHIP  RN42-I/RM  RN42 Series Class 2 Bluetooth® Module with On-Chip Antenna

Manufacturer:
MICROCHIP MICROCHIP
Manufacturer Part No:
RN42-I/RM
Newark Part No.:
06W3305
Product Range
RN Series
Technical Datasheet:
See all Technical Docs

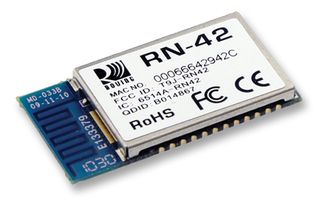

MICROCHIP RN42-I/RM
MICROCHIP RN42-I/RM
MICROCHIP RN42-I/RM
360°

The actual product may differ from image shown

Product Overview

The RN42 is a small form factor, low power, multi-interface protocol, Class 2 Bluetooth radio that is simple to design in, and is fully certified for designers who want to add a complete embedded Bluetooth solution to their products fast. The RN42 delivers up to 3 Mbps data rate for distances up to 20 meters with its high-performance PCB trace antenna and support for Bluetooth EDR. The RN42 is also available without antenna (RN42N) for applications that require an external antenna. The RN42N is form, function, and pin compatible with the RN42. Other configurations include: Apple-compatible firmware (RN42APL-I/RM), HCI mode (RN42HCI-I/RM), HID mode (RN42HID-I/RM), USB mode (RN42U-I/RM), and socket module (RN42SM-I/RM).
  • RF Module with PCB antenna (RN42-I/RM)
  • Fully certified Class 2 Bluetooth 2.1 + EDR module
  • Onboard embedded Bluetooth stack (no host processor required)
  • UART (SPP or HCI) and USB (HCI only) data connection hardware interfaces
  • Supports Bluetooth data link to iPhone/iPad/iPod Touch
  • Supports HID profile for making accessories such as keyboards, mouse, pointing devices
  • Programmable low power modes
  • Secure communications, 128 bit encryption
  • Error correction for guaranteed packet delivery
  • UART local and over-the-air RF configuration
  • Auto-discovery/pairing requires no software configuration (instant cable replacement)
  • Castellated SMT pads for easy and reliable PCB mounting
  • The standard part number (RN42-I/RM) supports SPP and DUN profiles
  • Bluetooth SIG qualified



Product Information

Bluetooth Version:
Bluetooth 2.1 + EDR
Supply Voltage Min:
3V
Supply Voltage Max:
3.6V
Signal Range Max:
20m
Data Rate:
921Kbps
Bluetooth Class:
Class 2
Receive Sensitivity:
-80dBm
Operating Temperature Min:
-40°C
Operating Temperature Max:
85°C
Product Range:
RN Series
Receiving Signal Range:
20m
Operating Frequency Range:
2.402GHz to 2.48GHz
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial
  • Communications & Networking
  • Consumer Electronics
  • Automation & Process Control
  • Embedded Design & Development
