MICROCHIP  ENC28J60-I/SP  Ethernet Controller, 10 Mbps, IEEE 802.3, 3.1 V, 3.6 V, DIP, 28

MICROCHIP ENC28J60-I/SP

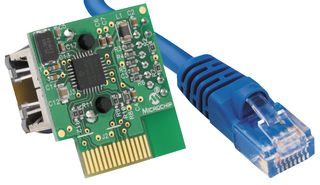

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 71J3845
  • Manufacturer Part No ENC28J60-I/SP

Product Overview


The ENC28J60-I/SP is a stand-alone Ethernet Controller with an industry standard serial peripheral interface (SPI). It is designed to serve as an Ethernet network interface for any controller equipped with SPI. The ENC28J60 meets all of the IEEE 802.3 specifications. It incorporates a number of packet filtering schemes to limit incoming packets. It also provides an internal DMA module for fast data throughput and hardware assisted checksum calculation, which is used in various network protocols. Communication with the host controller is implemented via an interrupt pin and the SPI, with clock rates of up to 20MHz. Two dedicated pins are used for LED link and network activity indication.
  • Fully compatible with 10/100/1000Base-T networks
  • Integrated MAC and 10Base-T PHY
  • Supports one 10Base-T port with automatic
  • Polarity detection and correction
  • Supports full and half-duplex modes
  • Programmable automatic re-transmit on collision
  • Programmable padding and CRC generation
  • Programmable automatic rejection of erroneous packets
  • SPI interface with clock speeds up to 20MHz
  • 8kB transmit/receive packet dual port SRAM
  • Configurable transmit/receive buffer size
  • Hardware managed circular receive FIFO
  • Byte-wide random and sequential access with auto-increment
  • Medium Access Controller (MAC) supports uni-cast, multicast and broadcast packets

Applications

Industrial; Communications & Networking
ESD sensitive device, take proper precaution while handling the device.
Back to top

Product Specifications, Documents & More


  • Controller IC Case Style: DIP
  • Data Rate: 10Mbps
  • Digital IC Case Style: DIP
  • Ethernet Type: IEEE 802.3
  • IC Interface Type: SPI
  • MSL: -
  • No. of Pins: 28
  • No. of Ports: 1
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Packaging: Each
  • SVHC: No SVHC (15-Jun-2015)
  • Supply Current: 180mA
  • Supply Voltage Max: 3.6V
  • Supply Voltage Min: 3.1V
  • Supply Voltage Range: 3.1V to 3.6V

Availability

Availability:  162


  • 162 in stock for same day shipping

Check stock and lead times
    More stock available week commencing 4/25/16

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $3.03 $3.03

Buy

Price

Quantity List Price
1 - 25 $3.03
26 - 99 $2.77
100+ $2.51
