DM330013-2 -

Microstick II, For dSPIC33, PIC24F,PIC24, dSPIC33, PIC32, Integrated USB Programmer / Debugger

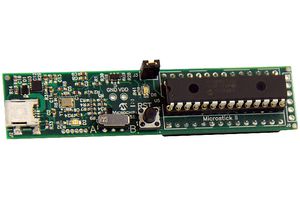

DM330013-2 - Microstick II, For dSPIC33, PIC24F,PIC24, dSPIC33, PIC32, Integrated USB Programmer / Debugger

The actual product may differ from image shown

Manufacturer:
MICROCHIP MICROCHIP
Manufacturer Part No:
DM330013-2
Newark Part No.:
66T7937
Technical Datasheet:
(EN)
See all Technical Docs

Product Overview

The DM330013-2 is a Microstick-II development board. It includes a complete development hardware platform for Microchip's 16bit and 32bit microcontrollers and Digital signal controllers. This will be perfect solution to those looking for a low-cost, easy to use development platform. The USB-powered kit includes an on-board debugger/programmer, a DUT socket for easy device swapping, A user LED and reset button. It is designed for insertion into a standard prototyping board for easy connection to additional circuitry. The kit is extremely portable as well and is still about the size of a stick of gum.
  • Integrated USB programmer/debugger, No external debugger required
  • USB Powered, Ease of use, No external power required
  • MPLAB support
  • DUT socket which is flexible, Easy device replacement
  • Enables plug-in to breadboard
  • Easy access to all device signals for probing
  • Small size than a stick of gum at 20 x76mm and easy portable
  • On-board User LED and reset switch
  • Low cost development hardware platform
  • Free demo code

Applications

Industrial, Consumer Electronics, Communications & Networking, Multimedia, Motor Drive & Control, Medical, Automotive, Lighting

Contents

Microstick-II board, USB cable, Two 1x14 header pins for proto board use, One PIC24FJ64GB002, One PIC24HJ64GP502, One dsPIC33FJ64MC802, One PIC32MX250F128, Info Sheet with installation instructions and board schematic.

Product Information

:
Microchip
:
16 / 32bit
:
PIC24FJ, PIC24H, PIC32, dsPIC33
:
PIC, dsPIC
:
PIC24, dsPIC33, PIC32
:
PIC24FJ64GB002
:
Microstick II Board, 2 - 1 x 14 Header Pins For Proto Board Use, PIC24H & F, dsPIC33, PIC32MX
:
-
