MICROCHIP  DM320013  Starter Kit, PIC32M, MTouch Slider, 24-bit Audio Playback, Integrated Programmer Debugger


Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 72T9150
  • Manufacturer Part No DM320013

Product Overview

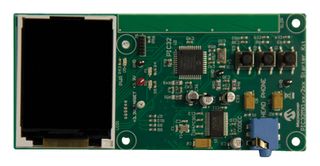

The DM320013 is an Starter kit which give complete solution for exploring the low cost, high performance PIC32MX1/MX2 devices. This kit is perfect for development of basic user interfaces with mTouchTM buttons and high quality audio. The board is pre loaded with demo code for an audio player. Simply download a free copy of MPLAB IDE and the demo code source from the web to jump start your development effort. This board features a codec an I2S interface, a touch slider with a CTMU interface, an LCD, a SD Card slot, and an on board debugger. For PIC32MX1XX/2XX starter kit, it is important to install the MPLAB Integrated Development Environment (IDE). MPLAB IDE provides the assembler tools thats required for development. You will also need a C compiler for the demonstration code. The MPLAB IDE and C Compiler seamlessly integrates into MPLAB IDE. Both the MPLAB IDE and C Compiler are free.
  • PIC32MX250F128 with 128KB of flash, 32KB RAM
  • Micro SD flash card
  • MTouch slider and buttons
  • 2 inch colour TFT display – 220 x 176 pixel
  • Integrated programmer debugger
  • USB powered
  • 24bit audio playback


Imaging, Video & Vision; Audio; Communications & Networking; Sensing & Instrumentation
Back to top

Product Information

  • Silicon Manufacturer Microchip
  • Core Architecture MIPS
  • Core Sub-Architecture PIC32
  • Silicon Core Number PIC32MX
  • Silicon Family Name PIC32MX1xx/2xx
  • No. of Bits 32bit
  • Kit Contents Starter Board PIC32MX1/MX2
  • Features 24-bit Audio Playback, Integrated Programmer Debugger, USB-powered, 2" Colour TFT Display
  • Product Range -
  • SVHC No SVHC (17-Dec-2015)
  • Application Note (319.56KB) EN
  • Availability

    Availability:  9

    Available until stock is exhausted

    • 9 in stock for same day shipping

    Price for: Each

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $109.99 $109.99



    Quantity List Price
    1+ $109.99
