  • Manufacturer:
  • Newark Part No.: 63R7680
  • Manufacturer Part No APGDT002

Product Information

  • Application Sub Type: CAN Bus Analyzer
  • Features: Supports CAN 2.0b and ISO11898-2, Direct access to CAN H and CAN L, CAN TX and CAN RX signals
  • Kit Application Type: Interface
  • Kit Contents: CAN BUS Analyzer Tool, Cable, User Guide/Software
  • SVHC: No SVHC (15-Jun-2015)
  • Silicon Core Number: -
  • Silicon Manufacturer: Microchip

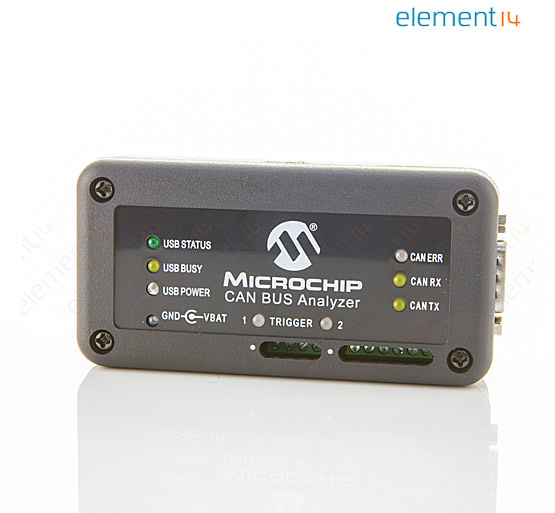

The APGDT002 is a CAN bus analyser tool intended to be a simple to use, low cost CAN bus monitor which can be used to develop and debug a high speed CAN network. The CAN analyser tool supports CAN 2.0b and ISO 11898-2 (high speed CAN with transmission rates of up to 1Mbit/s). The tool can be connected to the CAN network using the DB9 connector or through a screw terminal interface. The CAN BUS analyser has the standard functionality expected in an industry tool such as trace, transmit, trace filter, log file capability, and group CAN message transmit. All of these features make it a very versatile tool, allowing fast and simple debugging in any high speed CAN network.


  • Supports CAN 2.0b and ISO11898-2
  • Intuitive PC User Interface for functions such as configuration, trace, transmit, filter, log etc
  • Enhanced features in the PC GUI for PIC MCU support such as ECAN register view in the GUI
  • Direct access to CAN H and CAN L, CAN TX and CAN RX signals for robust debugging
  • Flexible CAN bus interface options i.e. standard DB9 connector or screw terminals
  • Software control of termination resistance and LED display for status, traffic, BUS error


  • Automotive
  • Medical
  • Communications & Networking
  • Industrial
  • Robotics


CAN BUS analyser tool, USB mini cable for PC connection, User Guide/Software CD.
