MICROCHIP  AC164123  PICTAIL PLUS, ENC28J60, ETHERNET, DAUGHTER BOARD

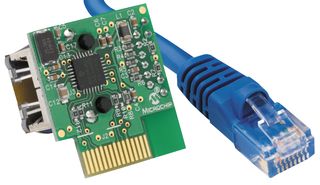

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 16M5242
  • Manufacturer Part No AC164123

Product Information


  • Application Sub Type: Ethernet
  • Features: IEEE 802.3 Compliant, 10BASE-T Ethernet, RJ-45 Female Ethernet Connector
  • Kit Application Type: Communication & Networking
  • Kit Contents: Daughter Board, literature and sample code
  • SVHC: No SVHC (15-Jun-2015)
  • Silicon Core Number: -
  • Silicon Manufacturer: Microchip

Description

The AC164123 is a ethernet PICtail Plus daughter board provides a cost effective method of evaluating and developing ethernet control applications. This board is designed for flexibility and can be plugged into explorer 16 (DM240001) development boards. The development board is populated with 28 Pin ENC28J60 ethernet controller which interfaces to the RJ 45 female connector. The ENC28J60 is a stand alone ethernet controller with an industry standard serial peripheral interface (SPI). It is designed to serve as an ethernet network interface for any controller equipped with SPI. The ENC28J60 meets all of the IEEE 802.3 specifications. It incorporates a number of packet filtering schemes to limit incoming packets. It also provides an internal DMA module for fast data throughput and hardware assisted IP checksum calculations. Communication with the host controller is implemented via two interrupt pins and the SPI, with data rates of up to 10Mb/s.

Features:

  • IEEE 802.3 compliant
  • Integrated MAC and 10BASE-T PHY
  • ENC28J60 ethernet controller with 25MHz oscillator and RJ 45 connector
  • Plug in compatible with the DM240001 explorer 16 development board
  • Receiver and collision squelch circuit
  • Supports full and half duplex modes
  • Receiver and collision squelch circuit

Applications:

  • Wireless
  • Communications & Networking

Availability

Availability:  1


  • 1 in stock for same day shipping

Check stock and lead times
    More stock available week commencing 11/16/15

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $36.77 $36.77
