SCHNEIDER ELCTRIC/MAGNECRAFT  70-459-1  RELAY SOCKET

SCHNEIDER ELCTRIC/MAGNECRAFT 70-459-1

Image is for illustrative purposes only. Please refer to product description.

Additional images

Product Overview

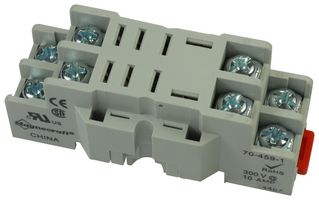

The 70-459-1 is a 8-pin Relay Socket with M3.5 combination head zinc-plated steel screw terminals and clamping plates. Suitable for use with Magnecraft 782-series relays. This zinc-plated copper alloy internal metal tracks socket is ideal for DIN rail/panel mounting.
  • Light gray body color
  • Red plastic locking clip DIN locking method
  • Screw Clamping wire connection method
  • UL94V-0 Flammability rating
  • -40 to 80°C Operating temperature range

Applications

Industrial
Back to top

Product Information


  • Socket Mounting DIN Rail, Panel
  • Socket Terminals Screw
  • No. of Pins 8Pins
  • RoHS Compliant Yes
  • Current Rating 10 A
  • For Use With Magnecraft 782 Series Relays
  • Accessory Type Relay Socket
  • SVHC To Be Advised
  • Voltage Rating 300 V

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/1639
  •  132/1642

  • 3D Product Image (123.33KB) EN
  • Availability

    Availability:  980


    • 980 in stock for same day shipping

    Check stock and lead times
      More stock available week commencing 5/30/16

    Price for: Each

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $8.10 $8.1

    Buy

    Price

    Quantity List Price
    1 - 19 $8.10
    20 - 49 $7.48
    50 - 99 $6.91
    100 - 249 $6.46
    250+ $5.81
