LINEAR TECHNOLOGY  DC718C  USB, DATA ACQUISITION, FOR QUIKEVAL-II EVALUATION KITS

LINEAR TECHNOLOGY DC718C

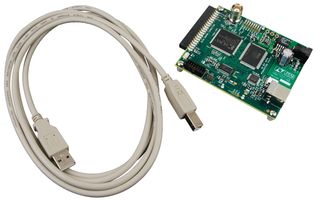

Image is for illustrative purposes only. Please refer to product description.

Additional images

Product Overview


DC718C demonstration board along with PScope software provides a USB based windows PC hosted digital data acquisition system supporting CMOS/LVTTL output ADCs up to 135Msps. The DC718 can be powered from either the USB port or from an external 6VDC to 9VDC power supply. PScope evaluation software automatically detects the DC718 and in select cases can also detect the ADC demonstration board under evaluation. This system provides for fast and easy performance evaluation of high speed ADCs by collecting up to 128k word samples and then performing various analyses on the data. The DC718 is connected to the ADC demonstration board via a 40pin edge connector, to the PC by a USB A-B cable and to an optional power supply by a 5mm plug.
  • Supported by Pscope system software
  • Connected via USB cable.
  • Sample data collection initiated either by internal generated trigger or externally supplied trigger

Applications

Signal Processing
Back to top

Product Specifications, Documents & More


  • Application Sub Type: USB Interface
  • Features: Power from USB / External Power Supply, Supports CMOS/LVTTL Output ADCs up to 105Msps
  • Kit Application Type: Interface
  • Kit Contents: QuickEval-II Software
  • SVHC: No SVHC (15-Jun-2015)
  • Silicon Core Number: -
  • Silicon Manufacturer: Linear Technology

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/152
  •  132/149

Availability

Availability:  0

    More stock available week commencing 3/14/16

Non-Cancelable / Non Returnable

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $300.00 $300
