LINEAR TECHNOLOGY  DC1012A-A  24BIT ANALOG TO DIGITAL-ADC EVALUATION BOARD, REQUIRES DC890, LVDS_XFMR & DC1075

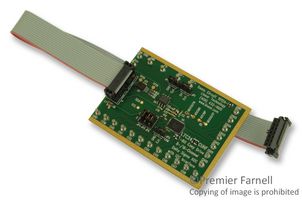

LINEAR TECHNOLOGY DC1012A-A

Image is for illustrative purposes only. Please refer to product description.

Product Overview


DC1012A-A is an QuikEval demonstration board designed for evaluation of LTC2499 ADC. It is 24bit, 8 differential or 16 single ended channel, delta sigma ADC with easy drive input current cancellation and I2C interface. The sampling scheme eliminates dynamic input current errors and shortcomings of on chip buffering through automatic cancellation of differential input current. This allows large external source impedances and rail to rail input signals to be directly digitized while maintaining exceptional DC accuracy. ADC includes temperature sensor and an integrated oscillator. This device can be configured to measure an external signal or its internal temperature sensor. DC1012A may be connected directly to target application’s analog signals while using DC590 USB serial controller board and QuikEval System software to measure performance. After evaluating with software, digital signals can be connected to application’s processor/controller for development of serial interface.
  • Easy drive technology enables rail to rail inputs with zero differential input current
  • Directly digitizes high impedance sensors with full accuracy
  • 2 wire I2C interface with 27 addresses plus one global address for synchronization
  • 600nVrms Noise, 2ppm INL, No missing codes
  • Integrated high accuracy temperature sensor
  • GND to Vcc input/reference common mode range
  • Programmable 50Hz, 60Hz or simultaneous 50Hz/60Hz rejection mode
  • 1ppm Offset and 15ppm full scale error
  • 2x speed/reduced power mode
  • No Latency: digital filter settles in a single cycle, even after a new channel is selected

Applications

Sensing & Instrumentation; Industrial
Companion with DC590B Controller Board. Sold separately
Back to top

Product Information


  • Silicon Manufacturer Linear Technology
  • Silicon Core Number LTC2499
  • Kit Application Type Data Converter
  • Application Sub Type ADC
  • Kit Contents Board, User Guide
  • Features Also works with requred DC890, LVDS_XFMR & DC1075
  • Product Range -
  • SVHC No SVHC (15-Jun-2015)
