LEM  LV 25-P  VOLTAGE TRANSDUCER, 15V, 10mA,0.8%

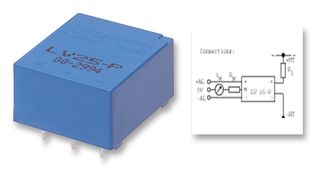

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 01P0390
  • Manufacturer Part No LV 25-P

Product Information


  • Accuracy %: 0.8%
  • External Depth: 29.2mm
  • Input Current: 10mA
  • Linearity %: 0.2%
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: 0°C
  • Output Current Max: 25mA
  • SVHC: To Be Advised
  • Supply Voltage Max: 15V
  • Supply Voltage Min: -15V
  • Transducer Function: Voltage Transformer

Description

A PCB mounting voltage transducer based on the Hall effect. The unit provides galvanic isolation between primary and secondary circuits. To enable a voltage to be measured a current proportional to the measured voltage must be collected through an external resistor, selected by the user, in series with the primary circuit of the unit.

Features:

  • Suitable for the electronic measurement of voltages associated with DC, AC and impulse circuits
  • Provides galvanic isolation between primary and secondary circuits

Availability

Availability:  126


  • 126 in stock for same day shipping

Check stock and lead times
  • 34 Further stock expected to ship on Sep 16, 2015
  • More stock available week commencing 11/2/15

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $81.50 $81.5

Buy

Price

Quantity List Price
1 - 9 $81.50
10 - 24 $75.41
25 - 99 $69.31
100 - 499 $63.98
500+ $57.89
