LEDEX  152099-233  Linear Solenoid, 24 VDC, 93.19 ohm, 8.5 W, 21.8 N, Pull, Continuous

LEDEX 152099-233
Technical Data Sheet (221.67KB) EN See all Technical Docs

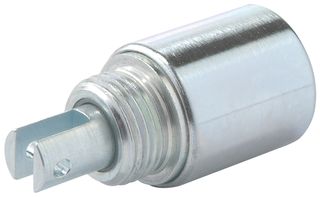

The actual product may differ from image shown

Product Overview

The 152099-233 is a STA® 24VDC/8.5W size 102 Tubular Solenoid with shock/vibration integrity housing, pull operation, continuous duty cycle and 93.19Ω coil resistance. This solenoid features long-life and high reliability. Heavy duty welded mounting brackets and plunger stops to limit plunger travel, provide positive stopping and keep pole faces from slamming together at the end of stroke. Ideal for high force and short-stroke applications.
  • 25 million cycles Solenoid life
  • Well-suited to lock/latch operations
  • 1000Vrms Dielectric strength
  • 60° Plunger without anti-rotation flat



Product Information

Coil Voltage:
24VDC
Coil Resistance:
93.19ohm
Coil Power Continuous:
8.5W
Holding Force - Metric:
21.8N
Solenoid Operation:
Pull
Solenoid Duty Cycle:
Continuous
Product Range:
-
Holding Force - Imperial:
4.9 lbf
SVHC:
To Be Advised
Coil Voltage VDC Nom:
24 V

Find similar products  grouped by common attribute

Applications

  • Computers & Computer Peripherals;
  • Industrial;
  • Test & Measurement;
  • Security

Legislation and Environmental

RoHS Compliant:
Yes
