KEIL  ULINKPRO  DEBUG, TRACE UNIT, USB2.0, FOR ARM7, ARM9, CORTEX

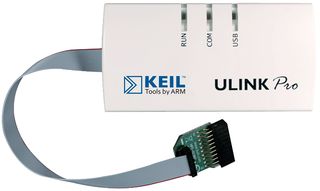

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer: KEIL
  • Newark Part No.: 74T5672
  • Manufacturer Part No ULINKPRO

Product Information


  • Core Architecture: ARM
  • Core Sub-Architecture: ARM7 / ARM9 / Cortex-M
  • Features: Unlimited breakpoints, Capture and analyze trace data
  • IC Product Type: In-Circuit Debugger / Programmer
  • Kit Contents: ULINKpro, 20pin adapter, Cables, USB Cable, CD
  • SVHC: To Be Advised
  • Silicon Family Name: ARM7 / ARM9 / Cortex

Description

The ULINKPRO is a debug and trace unit that connects PC's USB port to target system. It allows to program, debug and analyze applications using its unique streaming trace technology. The ULINKPRO together with MDK-ARM, provides extended on the fly debug capabilities for Cortex-M devices. It is possible to control the processor, set breakpoints and read/write memory contents, all while the processor is running at full speed. High speed data and instruction trace are streamed directly to PC enabling to analyze detailed program behaviour.

Features:

  • JTAG support for ARM7, ARM9 and Cortex-M
  • Serial wire debug (SWD) support for Cortex-M
  • Serial wire viewer (SWV) data and event trace for Cortex-M up to 100Mbit/s (Manchester mode)
  • Instruction trace (ETM) for Cortex-M3 and Cortex-M4 up to 800Mbit/s
  • Unique streaming trace direct to your PC, provides unlimited trace buffer
  • JTAG clock speed up to 50MHz
  • High speed memory read/write up to 1MB/sec
  • Seamless integration with the Keil uVision IDE and debugger
  • USB 2.0 high speed connection and USB powered (no power supply required)
  • Support for 5V only devices using optional 5V adapter

Applications:

  • Embedded Design & Development

Contents:

ULINKPRO USB-JTAG adapter, USB cable, 20 to 20 pin ribbon cable, 20 to 10 pin ribbon cable, 20 pin 0.05inch to 0.1inch adapter.

Footnotes

ULINKPRO support is available in MDK 4.02 or higher.


Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  130/77
  •  132/81

Availability

Availability:  1


  • 1 in stock for same day shipping

Check stock and lead times
    Per the manufacturer, more stock expected week of 8/17/15

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Unit Price: $1,250.00

Buy

Price

Quantity List Price
1+ $1,250.00
