A-1210NFAL -

Metal Enclosure, Wall Mount, Aluminium, IP66, NEMA 3R, 4, 4X, 12, 13, 305 mm, 254 mm

A-1210NFAL - Metal Enclosure, Wall Mount, Aluminium, IP66, NEMA 3R, 4, 4X, 12, 13, 305 mm, 254 mm
A-1210NFAL - Metal Enclosure, Wall Mount, Aluminium, IP66, NEMA 3R, 4, 4X, 12, 13, 305 mm, 254 mm
A-1210NFAL - Metal Enclosure, Wall Mount, Aluminium, IP66, NEMA 3R, 4, 4X, 12, 13, 305 mm, 254 mm

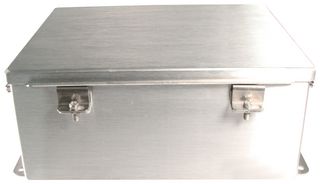

The actual product may differ from image shown

Manufacturer Part No:
A-1210NFAL
Newark Part No.:
06B5116
Technical Datasheet:
(EN)
See all Technical Docs

Product Information

:
Wall Mount
:
Aluminium
:
IP66
:
NEMA 3R, 4, 4X, 12, 13
:
305mm
:
254mm
:
127mm
:
Unfinished
:
12"
:
10"
:
5"
:
-
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The A-1210NFAL is an aluminium wall-mount lightweight Enclosure protects components and controls in corrosive indoor or outdoor environments. The device is unpainted, cover and sides of body have smooth brushed finish. It has optional aluminium panels are unpainted and optional steel panels are painted white.
  • IP66, NEMA/EEMAC-3R, 4, 4X, 12, 13 Protection rating
  • Type 5052 H-32 aluminium, 0.080" (2mm) thick
  • Seams continuously welded and ground smooth
  • Stainless steel screws and clamps on four sides of cover
  • Oil-resistant gasket
  • Weld-nuts provided for mounting optional panels

Applications

Industrial
