HARWIN  M22-2511005  Board-To-Board Connector, M22 Series, Through Hole, Header, 10 Contacts, 2 mm, Gold Plated Contacts

HARWIN M22-2511005

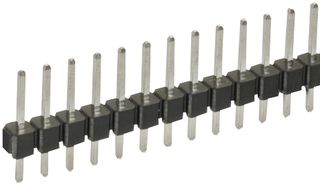

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 98H0416
  • Manufacturer Part No M22-2511005

Product Overview


The M22-2511005 is a 10-way SIL Vertical Pin Header with 3.5mm mating pin height, 2.3mm solder tail, gold-plated phosphor bronze contact, black UL94V-0 polyamide (nylon) 6T housing and 2mm contact pitch. Suitable for use with female PCB connectors and jumper sockets.
  • Pin headers can be cut into smaller sizes
  • 3A Contact rating
  • 20mΩ Maximum contact resistance
  • 1000MΩ Minimum insulation resistance
  • 300 Operations durability

Applications

Industrial

Product Range

Back to top

Product Information


  • Product Range M22 Series
  • Contact Termination Type Through Hole
  • Gender Header
  • No. of Contacts 10Contacts
  • Pitch Spacing 2mm
  • Contact Plating Gold Plated Contacts
  • Contact Material Phosphor Bronze
  • No. of Rows 1Rows
  • Contact Termination Through Hole Vertical
  • SVHC No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/764
  •  132/770

  • Drawing (78.29KB) EN
  • 3D Product Image (28.23KB) EN
