HAMAMATSU  S5973  DIODE, PHOTO, 760NM, TO-18-3

HAMAMATSU S5973

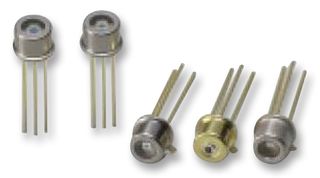

Image is for illustrative purposes only. Please refer to product description.

Additional images

  • Manufacturer:
  • Newark Part No.: 62M0264
  • Manufacturer Part No S5973

Product Overview


The S5973 from Hamamatsu is a leaded Si PIN photodiode in TO-18 package. This device is designed for visible to near infrared light detection. Photodiode is suitable for violet laser detection and other high speed photometry as it provides wide band characteristics at low bias.
  • High speed response
  • High sensitivity
  • High reliability
  • Dark current of 1pA at VR=10V
  • Cutoff frequency of 1GHz at VR=3.3V
  • Terminal capacitance of 1.6pF at f=1MHz and VR=3.3V

Applications

Industrial; Fibre Optics
Back to top

Product Specifications, Documents & More


  • Dark Current: 1pA
  • Diode Case Style: TO-18
  • Half Angle: -
  • MSL: -
  • No. of Pins: 3
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Packaging: Each
  • SVHC: To Be Advised
  • Wavelength Typ: 760nm
  • Wavelength of Peak Sensitivity: 760nm

Find similar products  grouped by common attribute

Availability

Availability:  79


  • 79 in stock for same day shipping

Check stock and lead times
    More stock available week commencing 3/28/16

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $30.84 $30.84

Buy

Price

Quantity List Price
1 - 24 $30.84
25 - 49 $29.37
50 - 99 $28.03
100 - 249 $27.17
250+ $26.31


Low

Legislation and Environmental


Back to top

Similar Products


Find products functionally similar to this one. Select one of the following links, and you will be taken to a product group page that presents all products in this category that share the given attribute.

Back to top

Customer Reviews


Customer Q&A Exchange


(There are 2 questions : 2 answers on this product)

Product Q&A

Ask your questions. Share your answers.



Browse Q&A


Search Questions
Need Product Support?
If you need immediate technical support use Live Support or Contact Us.
This space is yours...
Use this space to Ask your peers product questions or Answer those questions posted by them.
Sort by
2 years, 10 months ago
by
johnnicinco
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
Sorry for inconvenience. Supplier does not have the spice models for these photodiodes.
2 years, 10 months ago
by
TechGTC
0points
0out of 0found this answer helpful.
Was this helpful?(0)(0)
2 years, 8 months ago
by
Anonymous
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
This diode is only S5973. S5973-01 & S5973-02 have additional features & unfortunately we do not stock them. Please refer the below link for more info (Page 1 gives info about the features & Page 4 shows the drawings of each):
http://sales.hamamatsu.com/assets/pdf/parts_S/S5971_etc.pdf
2 years, 8 months ago
by
TechGTC
0points
0out of 0found this answer helpful.
Was this helpful?(0)(0)
1 of 1
