Product Overview

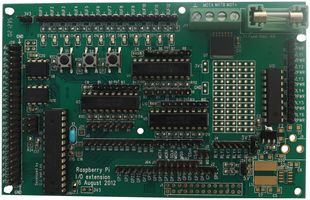

Gertboard is an input/output (I/O) extension board for the Raspberry Pi computer. It fits onto the GPIO pins of the Raspberry Pi (the double row of pins on the upper left corner) via a socket on the back of the Gertboard. A bit of care is required when putting the two devices together. It is easy to insert just one row of pins into the socket, but all of the pins need to be connected. The Gertboard gets its power from those GPIO pins, so user will need a power supply for the Raspberry Pi (RPi) that is capable of supplying a current of at least 1A. It is a flexible experimenter board that plugs directly into Raspberry Pi, and out into the physical world, allowing user to detect and respond to external physical events. Detect and output analogue voltages. Drive powerful motors. Detect switch presses. Illuminate LEDs and drive relays. Jumper cables allow user to hook up different parts of the circuit in many different ways, allowing total flexibility. All controlled by Raspberry Pi.
  • Plugs directly onto Raspberry Pi GPIO socket
  • Motor controller, capable controlling a motor bidirectionally, delivering 18V and 2A maximum
  • Dual channel D/A converter, 8bit
  • Dual channel  A/D converter, 10bit
  • Onboard Atmel ATmega328 MCU for running off board programs
  • 6 x open collector outputs
  • 12 x LED indicators
  • 3 x momentary push switches
  • 10 x strap cables and 18 x jumpers included
  • Software and manuals available to operate and learn how to use Gertboard

Applications

Hobby & Education; Security; Motor Drive & Control; Sensing & Instrumentation
ATmega device on the Gertboard operates at 3.3V If we use 5V there is a risk damaging the chip.
Compatible with Raspberry Pi Model A/B/B+
