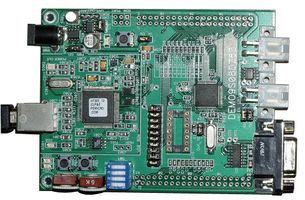

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The DEMO9S08DZ60 is a demo board for MC9S08DZ60 microcontroller. The MC9S08DZ60 microcontroller provide significant value to customers looking to combine controller area network (CAN) and embedded EEPROM in their applications. This combination will provide lower costs, enhanced performance and higher quality. The MC9S08DZ60 improves low voltage/low power performance without sacrificing CPU performance. This MCU is created by an advanced wafer fabrication process that gives MC9S08DZ60 a normal operating voltage of 2.7V to 5.5V. As a result, MC9S08DZ60 is capable of higher bus speeds at lower operating voltages. The DEMO9S08DZ60 board operates in two operating modes, run mode and debug mode. The run mode executes the user application from power on or reset and debug mode supports the development and debug of applications.
  • BDM_PORT header for BDM cable support
  • 32KB flash
  • 4KB RAM
  • Integrated P&E USB BDM
  • Onboard +5V regulator
  • LIN PHY with two, 4 position Molex connectors
  • Two user, one reset push switches
  • 14 position DIP switch
  • Power input from USB BDM


Automotive; Building Automation; Industrial; Medical
ESD sensitive device, take proper precaution while handling the device.


MC9S08DZ60 demo board, USB cable, Software CD, Documentation.
In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.
Back to top

Product Specifications, Documents & More

  • Core Architecture: HCS08
  • Core Sub-Architecture: HCS08
  • Features: Integrated P&E USB-BDM, Power Input Selection Jumpers, On-board +5V Regulator
  • Kit Contents: MC9S08DZ60 Board, software, cables, connectors
  • No. of Bits: 8bit
  • SVHC: To Be Advised
  • Silicon Core Number: MC9S08
  • Silicon Family Name: S08D
  • Silicon Manufacturer: Freescale

Find similar products  grouped by common attribute

This product also features on the following pages and catalog editions:

  •  /


Availability:  0

    More stock available week commencing 3/28/16

Non-Cancelable / Non Returnable

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $78.00 $78



Quantity List Price
1+ $78.00

Legislation and Environmental

Back to top

Customer Reviews

Customer Q&A Exchange

(There is 1 question : 1 answer on this product)

Product Q&A

Ask your questions. Share your answers.

Browse Q&A
Search Questions
Need Product Support?
If you need immediate technical support use Live Support or Contact Us.
This space is yours...
Use this space to Ask your peers product questions or Answer those questions posted by them.
Please could you provide more information on DEMO9S08DZ60 Product ?
2 years, 8 months ago
0out of 0found this question helpful.
Was this helpful?(0)(0)


The DEMO9S08DZ60 is a demonstration board for the MC9S08DZ60 microcontroller. Application development is quick and easy with the integrated USB-BDM, sample software tools and examples. An optional BDM_PORT port is also provided to allow use of a BDM_PORT cable. Two 40 pin connectors provide access to all IO signals on the target MCU. The DEMO9S08DZ60 board operates in two operating modes like Run mode or Debug mode. Run mode executes the user application from power-on or reset. Debug mode supports the development and debug of applications.

Feature & Benefits:
MC9S08DZ60 MCU with 32K bytes flash, 4K bytes RAM, 2K bytes eeprom
Integrated P&E USB-BDM
BDM_PORT header for BDM cable support (not installed)
LIN PHY with 2, 4 position Molex connectors
HS-CAN PHY with 3 position pin header connector
Power input from on-board regulator
Features 3 push switches, 2 user, 1 reset
1 4 position DIP switch 7 led indicators, 4 user, VDD, USB power, USB power out
Optional Power output through Connector J1
LP Filters on ADC inputs

Applications: Automotive, Building Automation, Industrial, Medical
