FAIRCHILD SEMICONDUCTOR  P6KE18A  TVS Diode, P6KE Series, Unidirectional, 15.3 V, 25.2 V, DO-15, 2 Pins

FAIRCHILD SEMICONDUCTOR P6KE18A
Technical Data Sheet (205.52KB) EN See all Technical Docs

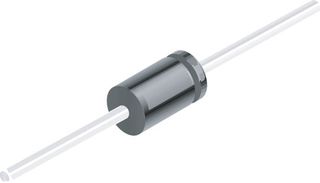

The actual product may differ from image shown

Product Overview

The P6KE series Transient Voltage Suppressor Diode offers 600W peak pulse power dissipation 1ms. It has excellent clamping capability, fast response time of <1ps from 0V to BV for unidirectional and 5ns for bidirectional. It is suitable for bipolar applications.
  • Low incremental surge resistance
  • Glass-passivated junction
  • Available in unidirectional and bidirectional
  • <1mA above 10V IR



Product Information

Power Dissipation Pd:
Product Range:
P6KE Series
TVS Polarity:
Unidirectional
Operating Voltage:
Reverse Stand-Off Voltage Vrwm:
15.3V
Clamping Voltage Vc Max:
25.2V
Diode Case Style:
DO-15
No. of Pins:
2Pins
Breakdown Voltage Min:
17.1V
Breakdown Voltage Max:
18.9V
Peak Pulse Power Dissipation:
600W
Packaging:
Cut Tape
Automotive Qualifications Standard:
-
Peak Pulse Current Ippm:
24 A
MSL:
-
Breakdown Voltage Range:
17.1V to 18.9V
SVHC:
No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

Moisture Sensitivity Level:
-
Product Traceability
RoHS Compliant:
Yes
