ELEMENT14  EDM6070AR-01  Embedded Display Module, SBC, AT91SAM9X35, With 7 Inch LCD, ARM9, LCD Controller

ELEMENT14 EDM6070AR-01

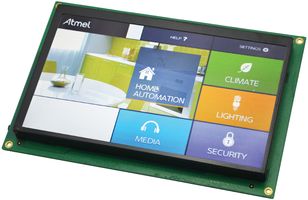

Image is for illustrative purposes only. Please refer to product description.

Additional images

  • Manufacturer:
  • Newark Part No.: 17X8439
  • Manufacturer Part No EDM6070AR-01

Product Overview


The EDM6070AR-01 is an ARM based Single Board Computer (SBC), designed & developed by element14. It comprises of a 7” LCD display and touch screen assembly, integrated with multi-functional embedded hardware based on Atmel’s ARM9 AT91SAM9X35 industrial processor. The EDM6070AR-01 is a fully integrated Embedded Display Module solution for a variety of embedded control HMI applications, ready to drop into your product with negligible integration effort, OR to just wrap an enclosure around, add a software application and become your finished product.

Applications

Industrial; Sensing & Instrumentation; Medical

Contents

MINI6935 CPU process board based on AT91SAM9X35 MCU, Expansion base board, 7” touchscreen LCD display, Product DVD/CD includes BSP, demo application & technical documentation
Back to top

Product Information


  • Silicon Manufacturer Atmel
  • Core Architecture ARM
  • Core Sub-Architecture ARM9
  • Silicon Core Number AT91SAM9X35
  • Silicon Family Name AT91SAM9xxx
  • No. of Bits 32bit
  • Kit Contents Base Board, MINI6935 CPU Core Module, 7" Touchscreen LCD Display, CD
  • Features 16KB Data & Instruction Cache, MMU, LCD Controller, High Bandwidth Multi-port DDR2 Controller
  • Product Range -
  • SVHC To Be Advised
  •   element14 Technical Page (383.22KB) EN
  • Operating Instructions (2.06MB) EN
  • Availability

    Availability:  8


    • 8 in stock for same day shipping

    Check stock and lead times
      More stock available week commencing 7/4/16

    Price for: Each

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $179.00 $179

    Buy

    Price

    Quantity List Price
    1+ $179.00


    Low
