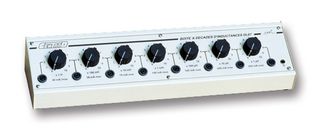

ELC  DL07  DECADE INDUCTANCE BOX, 1UH TO 11.11111H

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 03P2109
  • Manufacturer Part No DL07

Product Information


  • Accuracy %: 5%
  • Decade Box Type: Inductance
  • External Depth: 72mm
  • External Height: 100mm
  • External Width: 427mm
  • Measuring Range: 1µH to 11.11111H
  • No. of Decades: 7
  • Power Rating: -
  • Resolution: -
  • RoHS Compliant: Yes
  • SVHC: To Be Advised
  • Tolerance: -
  • Voltage Rating: 250V

Description

The DL07 is an Inductance box with 7 highly accurate decades, adjustable via a rotary control. Each decade consists of inductors wound around a ferrite pot core, which gives a Q factor between 55 and 100. Like all inductors of this type, the applied voltage mostly depends on the operating frequency. The voltage must be limited to avoid core saturation and overheating.

Features:

  • Robust switches
  • Easy to read metal case with intermediate tap at each decade
  • Good long-term stability
  • Q factor between 55 and 100, depending on decade
  • 19" standard rack size front panel

Applications:

  • Embedded Design & Development
  • Test & Measurement
