CYPRESS SEMICONDUCTOR  CY8CKIT-040  Development Board, CY8C4014 Cortex-M0 Capsense, Entry Level PSOC 4


Image is for illustrative purposes only. Please refer to product description.

Additional images

Product Overview

The CY8CKIT-040 is a Pioneer Development Kit. It is an easy-to-use and inexpensive development platform enabling to create unique designs with the industry’s smallest ARM® Cortex-M0 device, the PSoC 4 CY8C4000 device family. Featuring the PSoC 4000 device family, this kit provides you the power of a low cost ARM device combined with the fully customizable analog and digital fabric of a PSoC. The CY8CKIT-040 kit enables CapSense functionality by providing a Trackpad shield that plugs into the CY8CKIT-040 kit. Using this shield can evaluate the industry’s best CapSense to set/change LED colors and brightness on the PSoC 4000 kit. The CY8CKIT-040 PSoC 4000 Development Kit provides users a low cost development platform to design unique applications targeting the entry level PSoC 4 ARM Cortex-M0 devices. The CY8CKIT-040 PSoC 4000 development kit enables low cost devices with high end functionality.


Embedded Design & Development

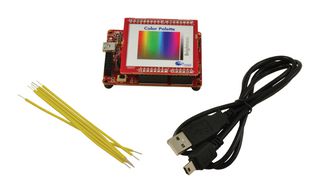

Trackpad shield board, 6 Jumper wires, Quick start guide and USB cable.
Back to top

Product Information

  • Silicon Manufacturer Cypress
  • Core Architecture ARM
  • Core Sub-Architecture Cortex-M0
  • Silicon Core Number CY8C4014
  • Silicon Family Name PSoC 4
  • No. of Bits 32bit
  • Kit Contents Dev Board CY8C4014, Trackpad Shield Board, 6 Jumper Wires, USB Cable & Quick Start Guide
  • Features Industry's Best CapSense, Entry Level PSoC 4, Easy-to-use & Inexpensive Platform
  • Product Range -
  • SVHC No SVHC (17-Dec-2015)
  •   element14 Technical Page (379.38KB) EN
  • Operating Instructions (36.74MB) EN
  • Availability

    Availability:  97

    • 97 in stock for same day shipping
    Check stock and lead times
      More stock available week commencing 6/6/16

    Price for: Each

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $30.00 $30



    Quantity List Price
    1+ $30.00
