CHERRY  0E1950H0  Microswitch, E Series, DPDT, Hinge Lever, Quick Connect, 15 A, 250 V

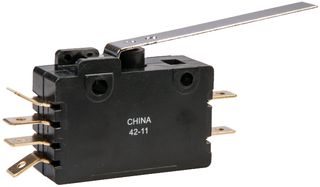

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 29F2884
  • Manufacturer Part No 0E1950H0

Product Overview

The 0E1950H0 is a double-pole double-throw Snap Action Switch with hinge lever actuator style, 130gf maximum operating force and quick connect terminal. High ratio actuator type. General purpose phenolic case and copper alloy common terminal.
  • Long life coil spring, snap action mechanism
  • Thermoplastic actuating button
  • Stainless steel spring
  • Sintered stainless steel roller


Consumer Electronics; Automation & Process Control; Industrial
  • Product Range

  • Back to top

    Product Specifications, Documents & More

    • Actuator Style: Hinge Lever
    • Contact Configuration: DPDT
    • Contact Current Max: 15A
    • Contact Voltage AC Nom: 250V
    • Contact Voltage DC Nom: -
    • Microswitch Actuator: Hinge Lever
    • Microswitch Type: Snap Action
    • Operating Force Max: 130gf
    • Product Range: E Series
    • SVHC: To Be Advised
    • Switch Operation: -
    • Switch Terminals: Quick Connect

    Find similar products  grouped by common attribute

    View this product in our online catalog

    This product also features on the following pages and catalog editions:

    •  131/1797
    •  132/1795


    Availability:  1,690

    • 1,690 in stock for same day shipping
    Check stock and lead times
      More stock available week commencing 1/11/16

    Price for: Each 1

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $8.70 $8.7



    Quantity List Price
    1 - 9 $8.70
    10 - 24 $8.01
    25 - 49 $7.66
    50 - 99 $6.96
    100 - 249 $6.09
    250 - 499 $5.75
    500 - 999 $5.40
    1000+ $5.05
