AVX  08053C224MAT2A  SMD Multilayer Ceramic Capacitor, 0805 [2012 Metric], 0.22 µF, 25 V, ± 20%, X7R

AVX 08053C224MAT2A
Manufacturer:
AVX AVX
Manufacturer Part No:
08053C224MAT2A
Newark Part No.:
96M1384
Technical Datasheet:
See all Technical Docs

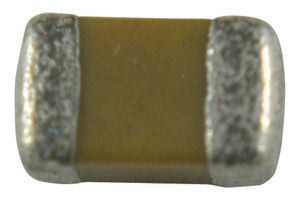

The actual product may differ from image shown

Product Overview

The 08053C224MAT2A is a surface-mount (SMT) Multilayer Ceramic Capacitor with Ni and Sn plated terminations. The X7R formulations are called temperature stable ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55 to 125°C. This capacitance change is non-linear. Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency. The X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
  • Reflow/wave soldering method
  • EIA Class II dielectric
  • Low parasitics
  • Excellent EMI filtering capabilities
  • Standard product



Product Information

Ceramic Capacitor Case:
0805 [2012 Metric]
Capacitance:
0.22µF
Voltage Rating:
25V
Capacitance Tolerance:
± 20%
Dielectric Characteristic:
X7R
Product Range:
-
Packaging:
Cut Tape
Operating Temperature Min:
-55°C
Operating Temperature Max:
125°C
Automotive Qualifications Standard:
-
MSL:
MSL 1 - Unlimited
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

Product Traceability
RoHS Compliant:
Yes
