AUTONICS  PR08-1.5DN  Inductive Proximity Sensor, PR Series, Cylindrical, Cable, 1.5mm, NPN, 10 V to 30 V

AUTONICS PR08-1.5DN
Technical Data Sheet (130.63KB) EN See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

Product Overview

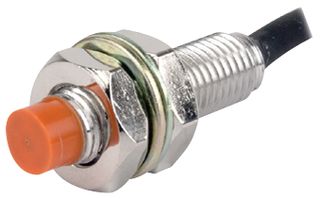

The PR08-1.5DN is a 1.5mm cylindrical inductive Proximity Sensor with pigtail cable. This PR series sensor is long life cycle, high reliability and simple operation. It features improved the noise resistance with dedicated IC. Reverse power polarity, surge and over-current protection. Replaceable for micro switches and limit switches.
  • Red LED status indication
  • Protection structure IP67 (IEC standard)
  • 8mm Body
  • NPN NO Output type
  • 2m 3-wire Cable



Product Information

Sensing Range Max:
1.5mm
Supply Voltage DC Min:
10V
Supply Voltage DC Max:
30V
Product Range:
PR08 Series
Sensor Input:
Inductive
Sensor Output:
NPN
Frequency Response Max:
1.5 kHz
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Sensing & Instrumentation

Legislation and Environmental

RoHS Compliant:
Yes
