AT91SAM9XE-EK -

Evaluation Kit, Ethernet, JTAG, 32bit, USB Device Port Interface

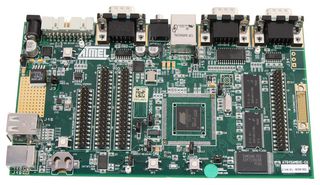

The actual product may differ from image shown

Manufacturer:
MICROCHIP MICROCHIP
Manufacturer Part No:
AT91SAM9XE-EK
Newark Part No.:
68T5216
Technical Datasheet:
(EN)
See all Technical Docs

Product Overview

The AT91SAM9XE-EK evaluation kit enables the evaluation and code development for applications running on an AT91SAM9XE device. The AT91SAM9XE128/256/512 is based on the integration of an ARM926EJ-S processor with fast ROM and RAM, 128, 256 or 512 Kbytes of flash and a wide range of peripherals. The embedded flash memory can be programmed in-system via the JTAG-ICE interface or via a parallel interface on a production programmer prior to mounting. Built in lock bits a security bit and MMU protect the firmware from accidental overwrite and preserve its confidentiality. The AT91SAM9XE128/256/512 embeds an Ethernet MAC, one USB device Port, and a USB host controller. It also integrates several standard peripherals, like six UARTs, SPI, TWI, timer counters, synchronous serial controller, ADC and a multimedia/SD Card interface. This controller includes a reset controller capable of managing the power-on sequence of the microcontroller and the complete system.
  • 64MB of SDRAM memory, 256MB of NAND flash memory
  • One Atmel serial data flash, One Atmel TWI serial EEPROM
  • One USB device port interface, Two USB host port interfaces
  • One DBGU serial communication port
  • One complete MODEM serial communication port
  • One additional serial communication port with RTS/CTS handshake control
  • JTAG/ICE debug interface
  • One PHY Ethernet 100-base TX with three status LED's
  • One Atmel AT73C213 audio DAC, One data flash, SD/MMC card slot

Applications

Industrial, Metering, Communications & Networking

Contents

AT91SAM9XE-EK board,„ universal input AC/DC power supply with US, UK and Europe plug adapter,„ one A/Btype USB cable,„ one serial RS232 cable,„ one RJ45 crossed Ethernet cable,„ one CD ROM.

Warnings

The board must not be subjected to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board.

Product Information

:
Atmel
:
32bit
:
AT91SAM9xxx
:
ARM
:
ARM926EJ-S
:
SAM9XE
:
Evaluation Kit for AT91SAM9XE, USB, RS232 & RJ45 Ethernet Cable, Power Supply Adapter, CD ROM
:
-
