ANALOG DEVICES  CFTL-CN0134-EVALZ  ADF4350, ADL5375, TRANSMITTER, EVALUATION BOARD

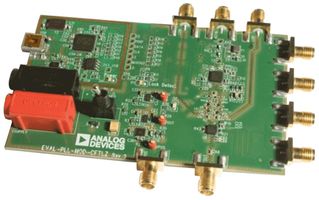

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 59T0421
  • Manufacturer Part No CFTL-CN0134-EVALZ

Product Information


  • Application Sub Type: Voltage Controlled Oscillator
  • Features: Fractional-N Synthesizer & Integer-N Synthesizer, Low Phase Noise VCO, RF Output Mute Function
  • Kit Application Type: Clock & Timing
  • Kit Contents: Evaluation Board CN0134
  • SVHC: To Be Advised
  • Silicon Core Number: ADF4350
  • Silicon Manufacturer: Analog Devices

Description

The CFTL-0134-EVALZ is an evaluation board described in the circuit from the Lab CN-0134, entitled "Broadband low EVM direct conversion transmitter". It contains the ADF4350 synthesiser, the ADL5375 wideband transmit modulator and some ultra-low noise LDOs. The board can be controlled using the ADF4350 programming software. A USB cable is included with the board to connect to a pc USB port. The control software for CFTL-0134-EVALZ uses the standard ADF4350 programming software. This circuit is a complete implementation of the analog portion of a broadband direct conversion transmitter (analog baseband in, RF out). RF frequencies from 500MHz to 4.4GHz are supported through the use of a PLL with a broadband integrated voltage controlled oscillator (VCO). Harmonic filtering of the LO from the PLL ensures excellent Quadrature accuracy.

Features:

  • Includes ADF4350 wideband PLL + VCO
  • ADL5375 features wideband IQ modulator
  • Features ultra low-noise voltage regulators, ADP150, ADP3334
  • 25MHz TCXO reference
  • USB interface
  • Accompanying ADF4350 software allows control of synthesiser functions from PC

Applications:

  • Communications & Networking
  • RF Communications
  • Medical

Availability

Availability: No Longer Manufactured

Price

Quantity List Price
1+ $253.39
