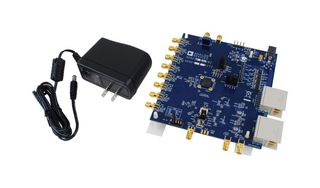

ANALOG DEVICES  AD9278-50EBZ  AD9278, ADC, I/Q DEMODULATOR, EVALUATION BOARD

Image is for illustrative purposes only. Please refer to product description.

Additional images

  • Manufacturer: ANALOG DEVICES
  • Newark Part No.: 18T2163
  • Manufacturer Part No AD9278-50EBZ

Product Information


  • Application Sub Type: ADC
  • Features: Evaluation Board for AD9278 ADC
  • Kit Application Type: Data Converter
  • Kit Contents: Evaluation Board AD9278
  • SVHC: To Be Advised
  • Silicon Core Number: AD9278
  • Silicon Manufacturer: Analog Devices

Description

The AD9278-50EBZ is an evaluation board for AD9278 devices. The AD9278 is designed for low cost, low power, small size, and ease of use. It contains eight channels of a variable gain amplifier (VGA) with a low noise preamplifier (LNA), an anti-aliasing filter (AAF), a 12bit 10MSPS to 65MSPS analog to digital converter (ADC) and an I/Q demodulator with programmable phase rotation. Each channel features a variable gain range of 45dB, a fully differential signal path, an active input preamplifier termination, a maximum gain of up to 51dB, and an ADC with a conversion rate of up to 65MSPS. The channel is optimized for dynamic performance and low power in applications where a small package size is critical.

Features:

  • It has 8 channels of LNA, VGA, AAF, ADC, and I/Q demodulator
  • It gives low power of 88mW per channel, TGC mode, 40MSPS
  • It provides TGC channel input referred noise of 1.3nV/√Hz, max gain
  • It has flexible power down modes
  • It is having fast recovery from low power standby mode of 2 μs
  • It has input referred noise of 1.25nV/√Hz and gain of 21.3dB
  • It is having programmable gain of 15.6dB/17.9dB/21.3dB
  • It has dual mode active input impedance matching
  • It has post amp gain (PGA) of 21dB/24dB/27dB/30dB
  • It has programmable second order LPF from 8MHz to 18MHz

Applications:

  • Portable Devices
  • Medical
  • Automotive

Availability

Availability:  1

(Available until stock is exhausted)


  • 1 in stock for same day shipping

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Unit Price: $262.05

Buy

Price

Quantity List Price Your Price
1+ $271.88
