ANALOG DEVICES  AD202KN  Isolation Amplifier, 1 Amplifier, 5 mV, 1500 Vrms, 13.5V to 16.5V, DIP, 10 Pins

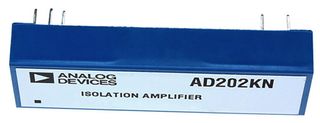

ANALOG DEVICES AD202KN

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 05F6718
  • Manufacturer Part No AD202KN

Product Overview


The AD202KN is a Miniature Isolation Amplifier with maximum nonlinearity of ±0.025% for the AD202K (±0.05% for the AD202J) and low drift over-temperature. General purpose two-port transformer-coupled Isolation Amplifier that may be used in a broad range of applications where input signals must be measured, processed and/or transmitted without a galvanic connection. These industry standard isolation amplifiers offer a complete isolation function, with both signal and power isolation. The AD202 provide total galvanic isolation between the input and output stages of the isolation amplifier through the use of internal transformer-coupling.
  • Isolated power outputs
  • Uncommitted input amplifier
  • 130dB High CMR
  • Small size
  • High accuracy
  • Wide bandwidth
  • Excellent common-mode performance

Applications

Motor Drive & Control; Signal Processing
ESD sensitive device, take proper precaution while handling the device.
Back to top

Product Information


  • No. of Amplifiers 1 Amplifier
  • Input Offset Voltage 5mV
  • Isolation Voltage 1500Vrms
  • Supply Voltage Range 13.5V to 16.5V
  • Amplifier Case Style DIP
  • No. of Pins 10Pins
  • Bandwidth 2kHz
  • Gain Non-Linearity Max 0.025%
  • Operating Temperature Min -40°C
  • Operating Temperature Max 85°C
  • Packaging Each
  • MSL -
  • Supply Current 35 mA
  • SVHC No SVHC (15-Jun-2015)
