191-2815-020 -

Ribbon Cable, Spectra Zip® Planar, Grey, 20 Conductor, 28 AWG, 0.072 mm²

191-2815-020 - Ribbon Cable, Spectra Zip® Planar, Grey, 20 Conductor, 28 AWG, 0.072 mm²

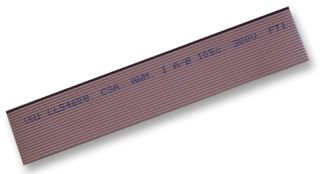

The actual product may differ from image shown

Manufacturer Part No:
191-2815-020
Newark Part No.:
59M7792
Technical Datasheet:
(EN)
See all Technical Docs

Product Information

:
Grey
:
20Conductor
:
28AWG
:
0.072mm²
:
-
:
-
:
7 x 36AWG
:
300V
:
PVC
:
Tinned Copper
:
1mm
:
Flat Ribbon Cable
:
19.9mm
:
-
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The 191-2815-020 is a 100ft 20-conductor Spectra Zip® Ribbon Cable, 28AWG wire. The 191-2815 series planar cable is made of round tinned copper conductor, grey PVC jacket. This cable is designed for use with 2mm hard metric mass terminable IDC connectors. A standardized utility connector widely used by disk drive and other manufacturers concerned with effective utilization of available board real estate. This cable is reliable and economical, with controlled electrical characteristics.
  • High density center-to-center spacing
  • Easy identification of #1 conductor with blue edge mark
  • Double contour allows termination from either side of cable
  • Easy conductor separation for circuit routing
  • 1A Nominal at 10°C rise above ambient
  • 83Ω nominal impedance

Applications

Industrial
