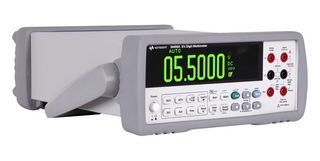

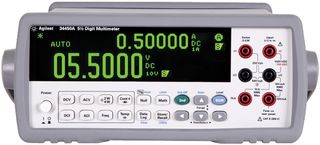

KEYSIGHT TECHNOLOGIES  34450A  MULTIMETER, DIGITAL, AUTO/MANUAL, 5-1/2 DIGIT

KEYSIGHT TECHNOLOGIES 34450A

Image is for illustrative purposes only. Please refer to product description.

Additional images

Product Overview


Turbo charge your production line with the 34450A digital multimeter. With its fast speed of up to 190 readings per second you can now increase your manufacturing throughput tremendously. Get highly accurate, repeatable and trustworthy measurements with the 0.015% DCV accuracy designed to meet general industrial and educational needs.
  • Built-in Math functions
  • 11 measurement functions including DC voltage & current, True RMS AC voltage & current etc
  • Ultra-bright OLED with dual display capability
  • Up to 50,000 memory points for data logging
  • Built-in Histogram function
  • With Fluke 45 and Fluke 8808A code compatibility
  • Controlled remotely via SCPI commands or Command Expert
  • IVI-COM driver is included to ensure an easy integration with different programming environments

Applications

Test & Measurement; System Monitoring; Signal Processing

Contents

Test lead set, power cord, USB interface cable, quick start guide, product reference CD and Keysight IO library suite CD-ROM
Back to top

Product Information


  • DMM Functions AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Frequency, Resistance, Temperature
  • Current Measure AC Max 10A
  • Current Measure DC Max 10A
  • Voltage Measure AC Max 750V
  • Voltage Measure DC Max 1kV
  • Resistance Measure Max 0.1Gohm
  • DMM Connectivity GPIB, RS232, USB
  • No. of Digits 5.5
  • Product Range -
  • Plug Type US
  • Current Measuring Range AC 10mA to 10A
  • DMM Type Bench
  • Voltage Measuring Range DC 100mV to 1000V
  • Ranging Auto, Manual
  • Voltage Measuring Range AC 100mV to 750V
  • Temperature Measuring Range -80°C to +150°C
  • DMM Response Type True RMS
  • SVHC To Be Advised
  • Current Measuring Range DC 100µA to 10A

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/2175
  •  132/2179

  • Application Note (298.44KB) EN
  • Availability

    Availability:  33


    • 33 in stock for same day shipping

    Check stock and lead times
      More stock available week commencing 6/6/16

    Price for: Each

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $829.00 $829

    Buy

    Price

    Quantity List Price
    1+ $829.00


    Low
