ADAFRUIT INDUSTRIES  823  OLED DISPLAY, 100X16, BLUE

ADAFRUIT INDUSTRIES 823
Technical Data Sheet (75.37KB) EN See all Technical Docs

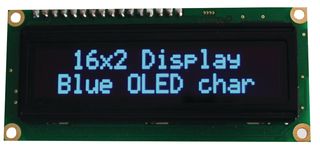

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The 823 is a 16 x 2 blue character OLED Display features low power, ultra-high contrast and any-angle readability. It is pin/shape compatible with standard HD44780 LCDs. Built-in default character set supports English/Japanese text. Can also be set to use Western European and Russian. Up to 8 extra characters can be created for custom glyphs or foreign language support. As an added bonus, the controller allows to use it as a 100x16 graphic display as well.
  • Connection port is 0.1" pitch, single row for easy bread boarding and wiring
  • Pins are documented on the back of the LCD to assist in wiring it up
  • No backlight, each pixel is an individual LED
  • Can be fully controlled with only 7 digital lines (any analog/digital pins can be used)
  • Comes with a strip of header
  • Works with 3 or 5V power and logic



Product Information

Supply Voltage Min:
Supply Voltage Max:
Backlighting Colour:
No. of Digits / Alpha:
-
Display Size:
Screen Size:
-
Panel Cutout Height:
Panel Cutout Width:
Panel Cutout Diameter:
-
Operating Temperature Min:
Operating Temperature Max:
Product Range:
-
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Automation & Process Control;
  • Sensing & Instrumentation
