ABRACON  ABS09-32.768KHZ-T  CRYSTAL, 32.768KHZ, 12.5PF, 4.1 X 1.5MM

ABRACON ABS09-32.768KHZ-T

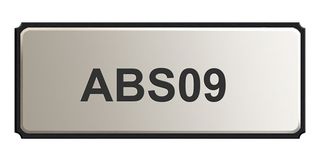

Image is for illustrative purposes only. Please refer to product description.

Additional images

  • Manufacturer:
  • Newark Part No.: 14N8752
  • Manufacturer Part No ABS09-32.768KHZ-T

Product Overview


The ABS09-32.768KHZ-T is a 4.1 x 1.5 x 0.9mm 20ppm surface-mount low profile Crystal features ceramic offers excellent environmental and heat resistance ideal for high density circuit boards. The ABS09 crystal for use with the wireless communications, PDA and palm pilots, wide range in communication, measuring equipment and industrial applications.
  • Flexural (tuning fork) operation mode
  • 70kΩ Maximum equivalent series resistance
  • 1pF Typical shunt capacitance
  • 1µW Maximum drive level
  • 500MΩ at 100VDC Minimum insulation resistance

Applications

Clock & Timing; Communications & Networking; Test & Measurement; Commercial; Industrial; Wireless

Product Range

Back to top

Product Specifications, Documents & More


  • Crystal Case Type: SMD, 4.1mm x 1.5mm
  • Crystal Mounting Type: SMD
  • Frequency: 32.768kHz
  • Frequency Nom: 32.768kHz
  • Frequency Stability: -
  • Frequency Stability + / -: -
  • Frequency Tolerance: ± 20ppm
  • Frequency Tolerance + / -: 20ppm
  • Load Capacitance: 12.5pF
  • No. of Pins: 2
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Product Range: ABS09 Series
  • SVHC: To Be Advised

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/692
  •  132/696

Availability

Availability:  3,000


  • 3,000 in stock for same day shipping

Check stock and lead times
    More stock available week commencing 3/21/16

Price for: Cut Tape 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $0.637 $0.637

Buy

Price

Quantity List Price Your Price
1 - 9 $0.959
10 - 49 $0.847
50 - 99 $0.791
100 - 499 $0.70
500 - 749 $0.662
750 - 999 $0.627
1000+ $0.553
