ABRACON  ABS06-32.768KHZ-1-T  CRYSTAL, 32.768KHZ, 12.5PF, 2 X 1.2MM

ABRACON ABS06-32.768KHZ-1-T

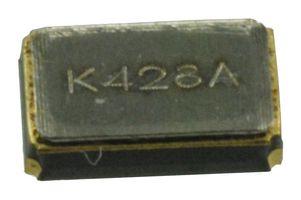

Image is for illustrative purposes only. Please refer to product description.

Additional images

  • Manufacturer:
  • Newark Part No.: 60R3990
  • Manufacturer Part No ABS06-32.768KHZ-1-T

Product Overview


The ABS06-32.768KHZ-1-T is a 2.0 x 1.2 x 0.6mm SMD Low Profile Crystal Oscillator. Hermetically sealed and not moisture sensitive.
  • Miniature Size Ideal for High Density Circuit Boards
  • Ceramic Package Offers Excellent Environmental & Heat Resistance
  • Extended Industrial Temperature Range
  • 90kΩ ESR
  • Ageing ±3ppm Per Year Max
  • 500MΩ Insulation Resistance

Applications

Communications & Networking; Consumer Electronics; Wireless; Industrial; Test & Measurement

Product Range

Back to top

Product Specifications, Documents & More


  • Crystal Case Type: SMD, 2mm x 1.2mm
  • Crystal Mounting Type: SMD
  • Frequency: 32.768kHz
  • Frequency Nom: 32.768kHz
  • Frequency Stability + / -: -
  • Frequency Tolerance: ± 10ppm
  • Frequency Tolerance + / -: 10ppm
  • Load Capacitance: 12.5pF
  • No. of Pins: 2
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Product Range: ABS06 Series
  • SVHC: To Be Advised

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/692
  •  132/696

Availability

Availability:

Check stock and lead times
    More stock available week commencing 3/21/16

Contact me when back in stock

Substitutes

  • 14T0076 - CRYSTAL, 32.768KHZ, 12.5PF, 2 X 1.2MM

Price for: Cut Tape 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $1.88 $1.88

Buy

Price

Quantity List Price
1 - 9 $1.88
10 - 49 $1.80
50 - 99 $1.76
100 - 499 $1.50
500 - 749 $1.47
750 - 999 $1.34
1000+ $1.23
