3M  CN-3190 SHEET  SHEET, POLYESTER, FLAT, 70DB

3M CN-3190 SHEET
Technical Data Sheet (28.09KB) EN See all Technical Docs

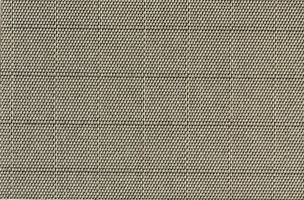

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The CN-3190 SHEET is an EMI Shielding Sheet nickel that consists of anti-corrosion nickel-on copper plated polyester rip-stop fabric and unique electrically conductive pressure-sensitive acrylic adhesive. Many factors determine the true shielding effectiveness of a shielding tape, including type and thickness of foil adhesive type, intimacy of contact, smoothness of application surface, strength and frequency of the EMI signal, etc. However, using standard tests and fixtures it is possible to determine a value for the attenuations. The unique metal-plated fabric backing offers the additional benefits of excellent flexibility and conformability, very light weight and exceptional strength. The fabric backing also minimizes the possibility of finger lacerations. The CN-3190 is used in applications typically served by metal foil shielding tapes such as grounding and EMI shielding equipment, components, shielded rooms, etc.
  • Anti-corrosion treated Cu/Ni conductive fabric
  • Conductive acrylic adhesive
  • Supplied on a removable liner for easy handling and die cutting



Product Information

Shielding Type:
EMI Shielding
Product Range:
CN Series
Gasket Material:
Nickel on Copper Plated Polyester
Length:
10"
Width:
262mm
Depth:
-
Attenuation:
70dB
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Safety;
  • Industrial

Also Known As

GTIN UPC EAN: 00051128560105

Legislation and Environmental

Product Traceability
RoHS Compliant:
Yes
